Biohandle

Shape

Round, rectangle or square shape.

Length

From 60 to 240 cm, choose a length that is right for your door design

Attachment choices

Biohandle allows attachments with 90 or 45 degree holders.

Two colours

All types of Biohandle are available in stainless steel and black colour.

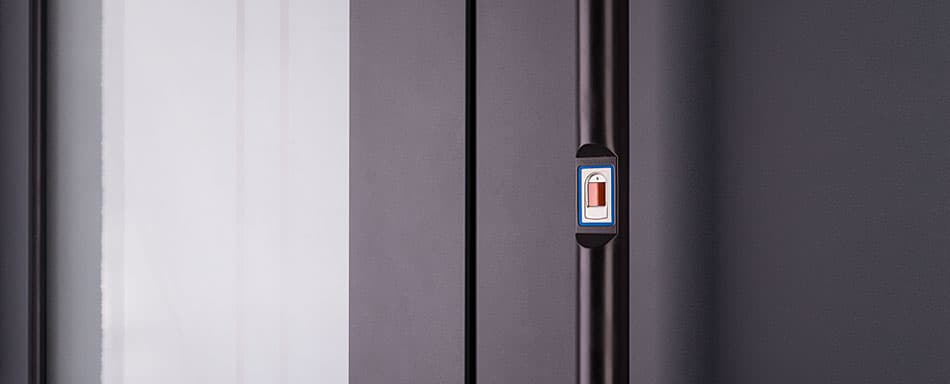

Fingerprint reader in the back, in the front or on the holder

For extra discretion, the reader can be integrated in the back of the handle or on the holder.

Compatible:

CU-303 controller(app control/analogue control)

BBX mini (App control/Analogue control)

LED lighting option with app control
  • Adjustable brightness level
  • Adjustable turn on/turn off time (manual or automatic at sunset/sunrise)
  • LED lighting is also available for handles with reader in the back

Use Case: Main Doors, Office Doors, Double Doors

Touchpad

The Touchpad is a logical choice for those who want an alternative to the Fingerprint reader.

Add the Touchpad to the Touchkey fingerprint reader or the Bio handle for additional security.

Available in Black and Black + Silver colors, the touchpad connects to the same controller using a Y cable.

Number of codes100, of which 1 is an administrator code
Length of code4 to 16 characters
User Interface Capacitive illuminated keys

Controllers

DIN CONTROL UNIT

The control unit is mounted in the electrical cabinet.

Compatible:
  • Touchkey fingerprint scanner
  • Biohandle
  • Touchpad
Functions:
  • Analogue control
  • App control (Wi-Fi direct)
  • 2 relay output

CU-303

BBX MINI CONTROL UNIT

The control unit is built into the door leaf, next to the motor lock or next to the cable transfer.

Compatible:
  • Touchkey fingerprint scanner
  • Biohandle
  • Touchpad
Functions:
  • Analogue control
  • App control (Wi-Fi direct)
  • LED connection
  • 1 relay output

BBX Mini

Compatible with all automation Brands.
Compatible with Analog and IP Video doorphones.

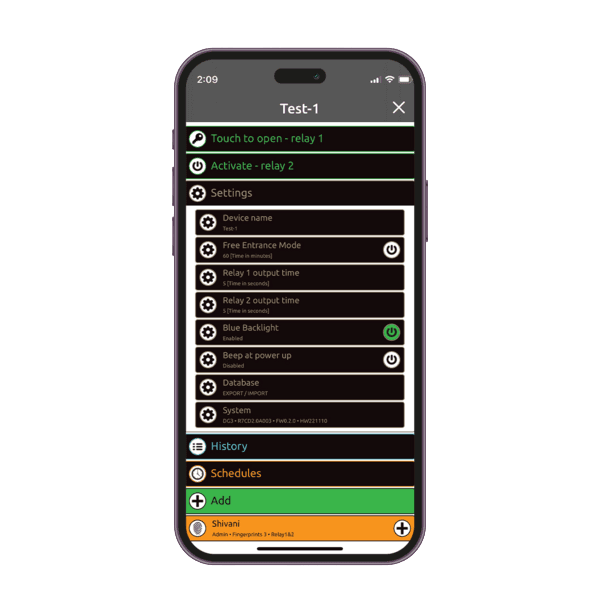

APP CONTROL
FINGERPRINT CAPACITIVE: 166X3
NUMBER OF ADMINISTRATORS: Unlimited
BLUE BLACKLIGHT ON/OFF
SCANNER SECURITY LOCKDOWN
LED CONTROL
HISTORY OF EVENTS
RELAY SETUP
ENTRANCE SCHEDULES FOR USERS
FREE PASS MODE
DATABASE IMPORT AND EXPORT
UNLOCKING THE DOOR VIA SMARTPHONE APP (WITHIN LOCAL REACH)

Product Features And Details

  • Capacity: 165 Users, 1 Admin
  • The controller has 2 relay outputs to control 2 locks independently or simultaneously.
  • Can be used for Main door or Sliding / Swing wardrobe doors
  • It is possible to control up to 8 wardrobe doors with one Reader and controller.
  • ID3 algorithm for biometric data processing
  • Compatible with all Automation Systems
  • Compatible with all video door phones.
  • Mounting: Flush Mount with Backbox
  • Push Button Input: Yes (Two Inputs)
  • Lock Relay Timing: Programmable (Max 60 sec).
  • Backlight Led on reader for feedback.
  • Sophisticated sensor for quick fingerprint recognition.
  • Fingerprints remain stored in the event of power failure.
  • Weekly Scheduling possible.
  • Log details are available.
  • Control App for IOS & Android Mobile available.

Additional hardware required.

Appropriate locks required can be purchased from Aurus digital locks in the link below or can be purchesed separately.
