A smart home begins with a smart entrance

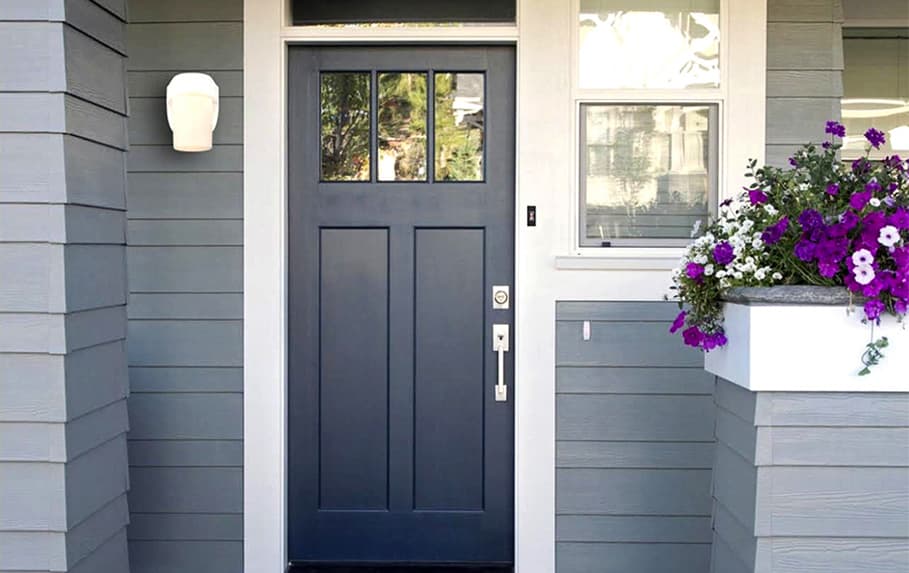

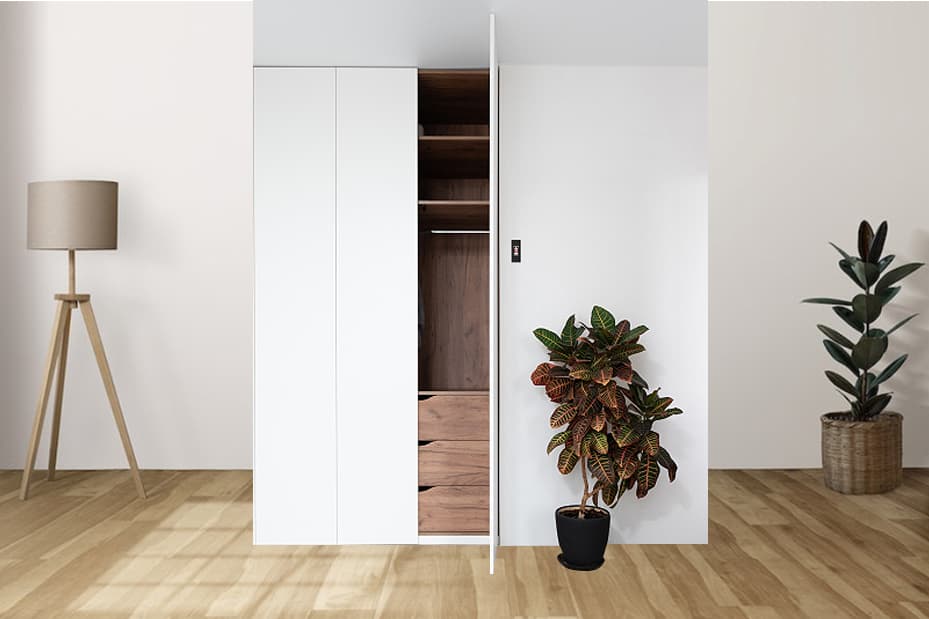

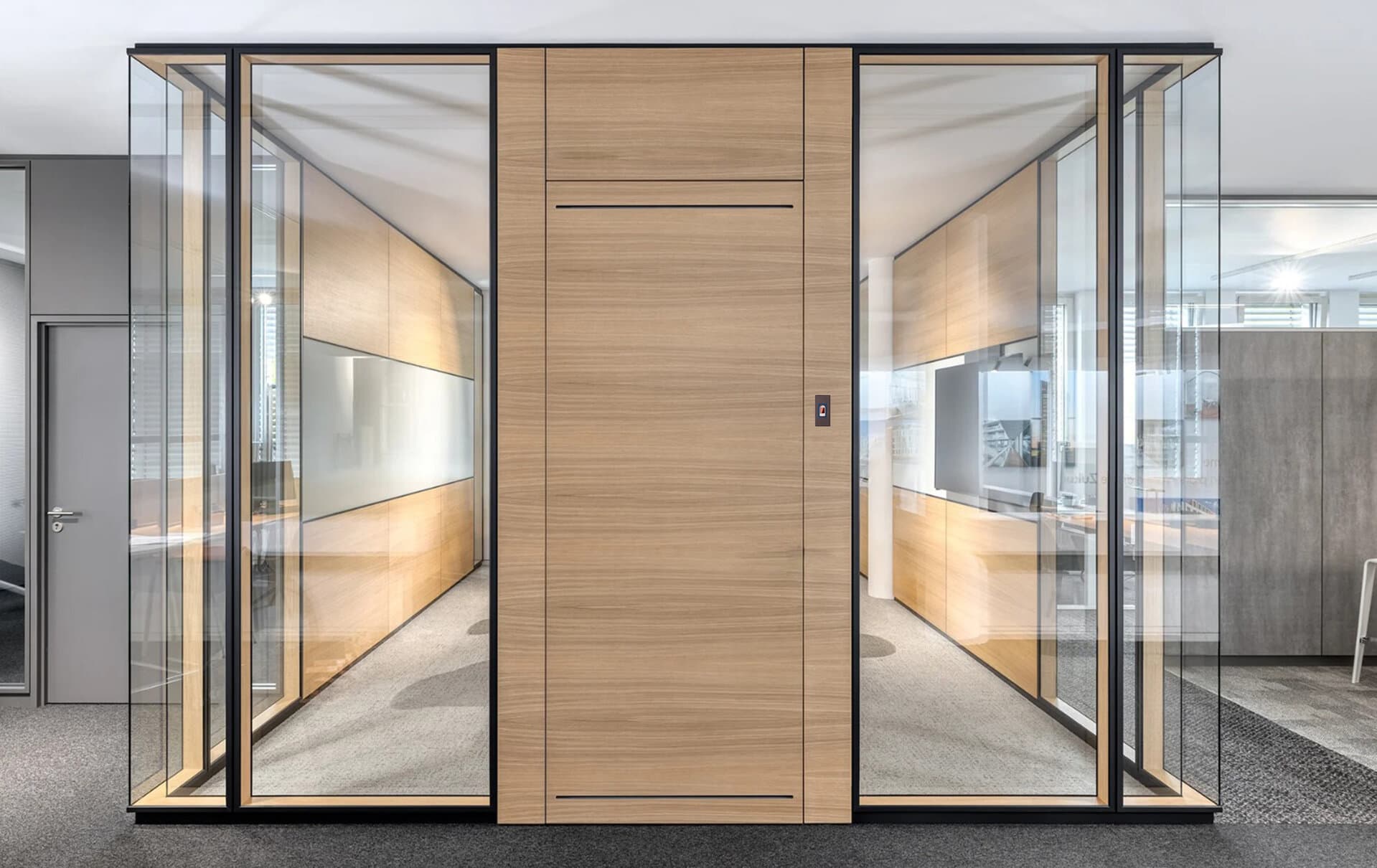

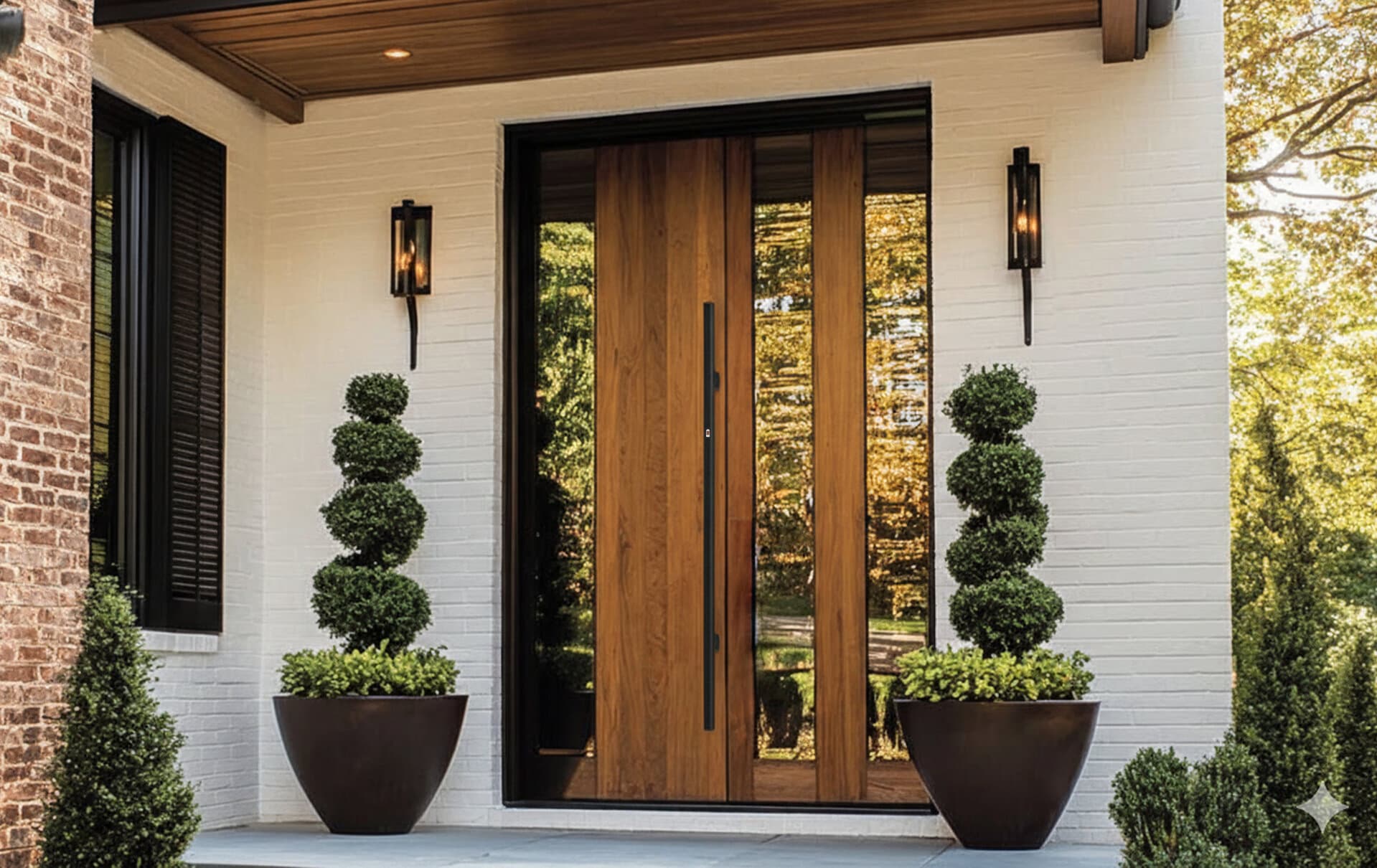

Use Case: Main Doors, Multiple Wardrobes,

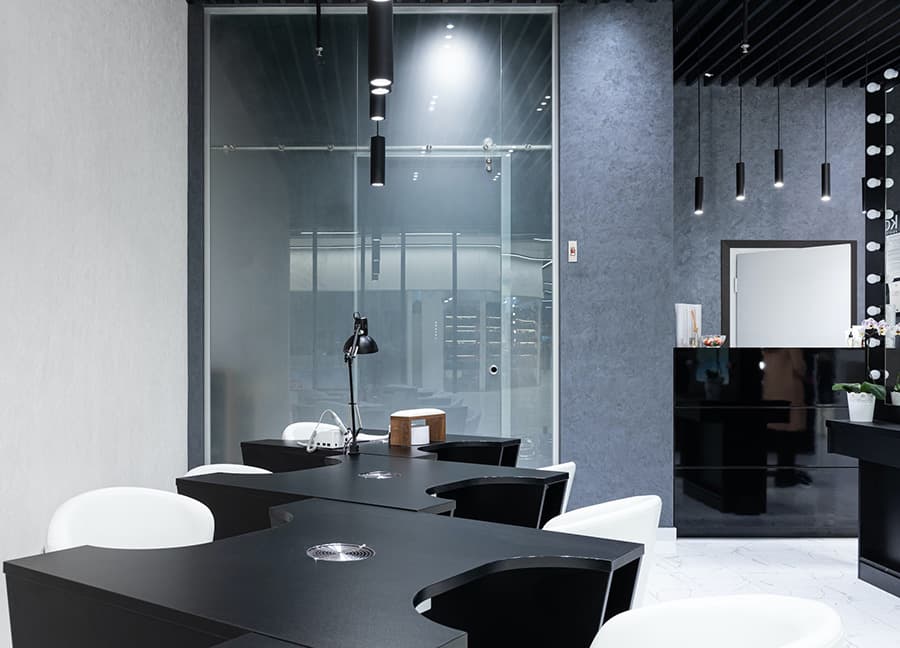

Office Doors, Double Doors
![Main doors](/_next/image?url=%2Fimages%2Fmain-door-2.jpg&w=3840&q=75)
![Main doors](/_next/image?url=%2Fimages%2Fmultiple-wardrobes.jpg&w=3840&q=75)
![Main doors](/_next/image?url=%2Fimages%2Fdouble-doors.jpg&w=3840&q=75)
![Main doors](/_next/image?url=%2Fimages%2Foffice-doors.jpg&w=3840&q=75)

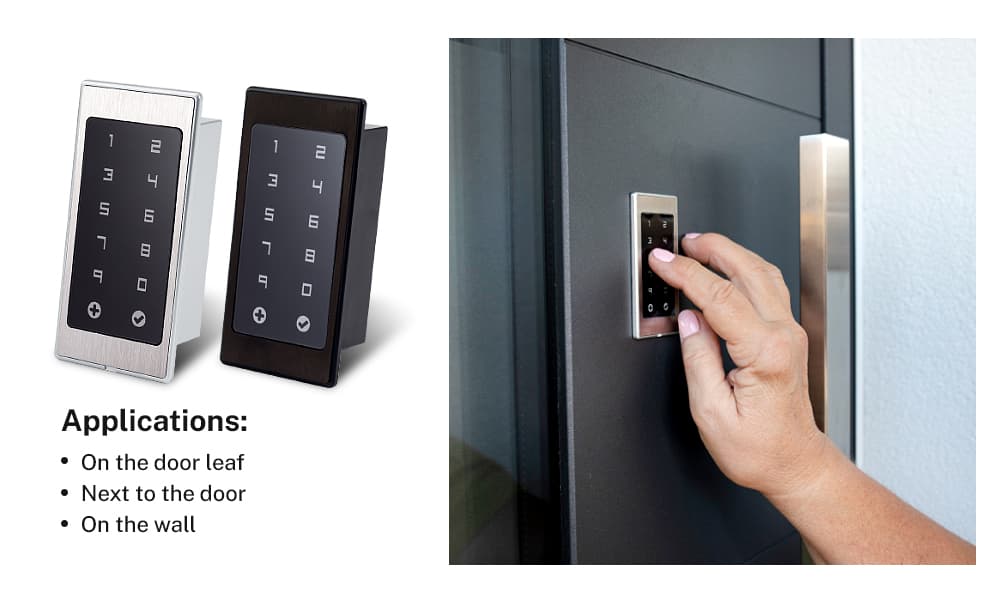

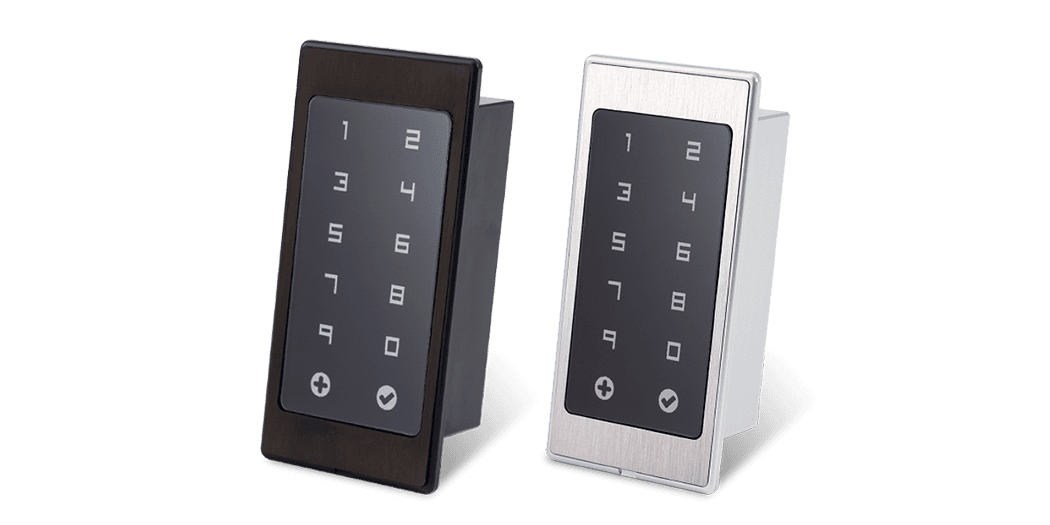

Touchpad
![Touchpad](/_next/image?url=%2Fimages%2Ftouch.jpg&w=2048&q=75)
The Touchpad is a logical choice for those who want an alternative to the Fingerprint reader.
Add the Touchpad to the Touchkey fingerprint reader or the Bio handle for additional security.
Available in Black and Black + Silver colors, the touchpad connects to the same controller using a Y cable.
Number of codes | 100, of which 1 is an administrator code |
Length of code | 4 to 16 characters |
User Interface | Capacitive illuminated keys |
Controllers

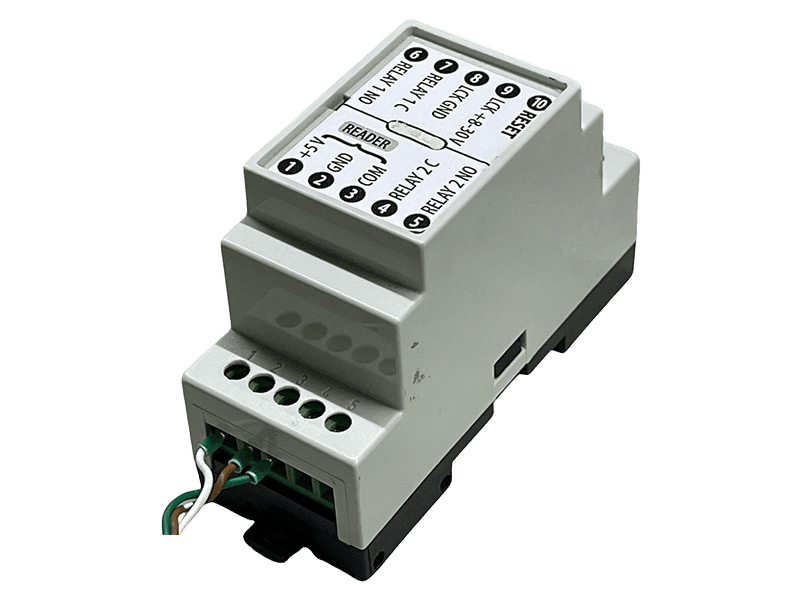

DIN CONTROL UNIT
The control unit is mounted in the electrical cabinet.
Compatible:

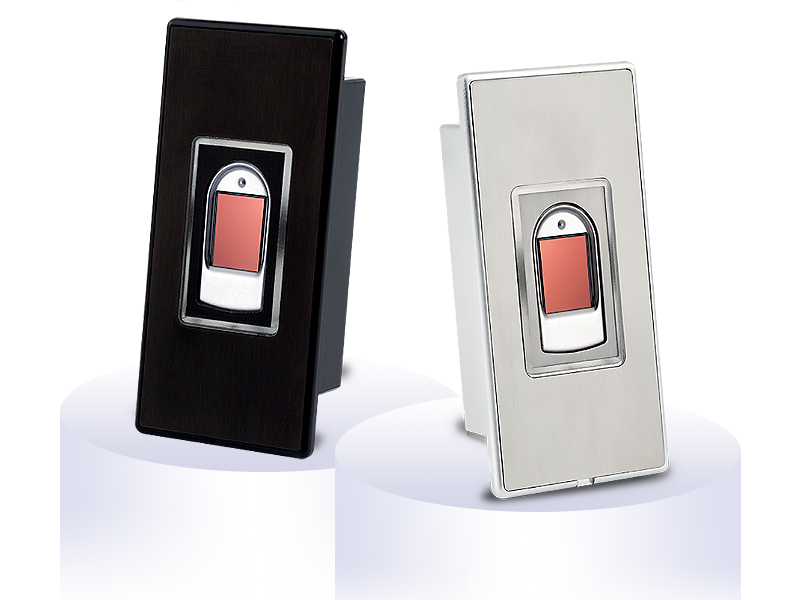

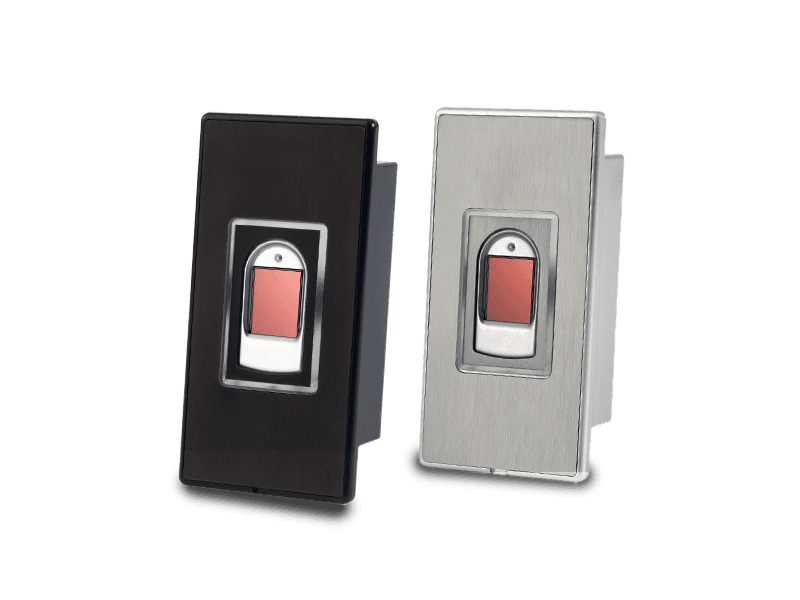

- Touchkey fingerprint scanner

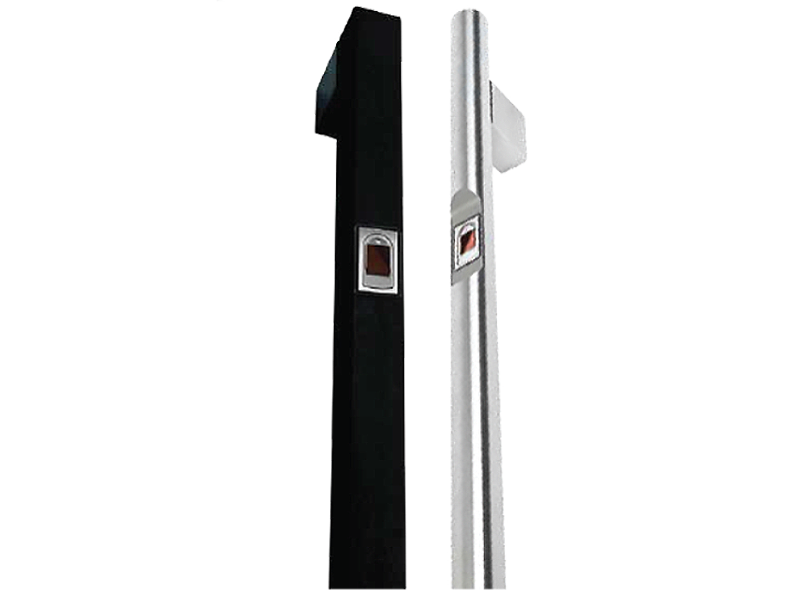

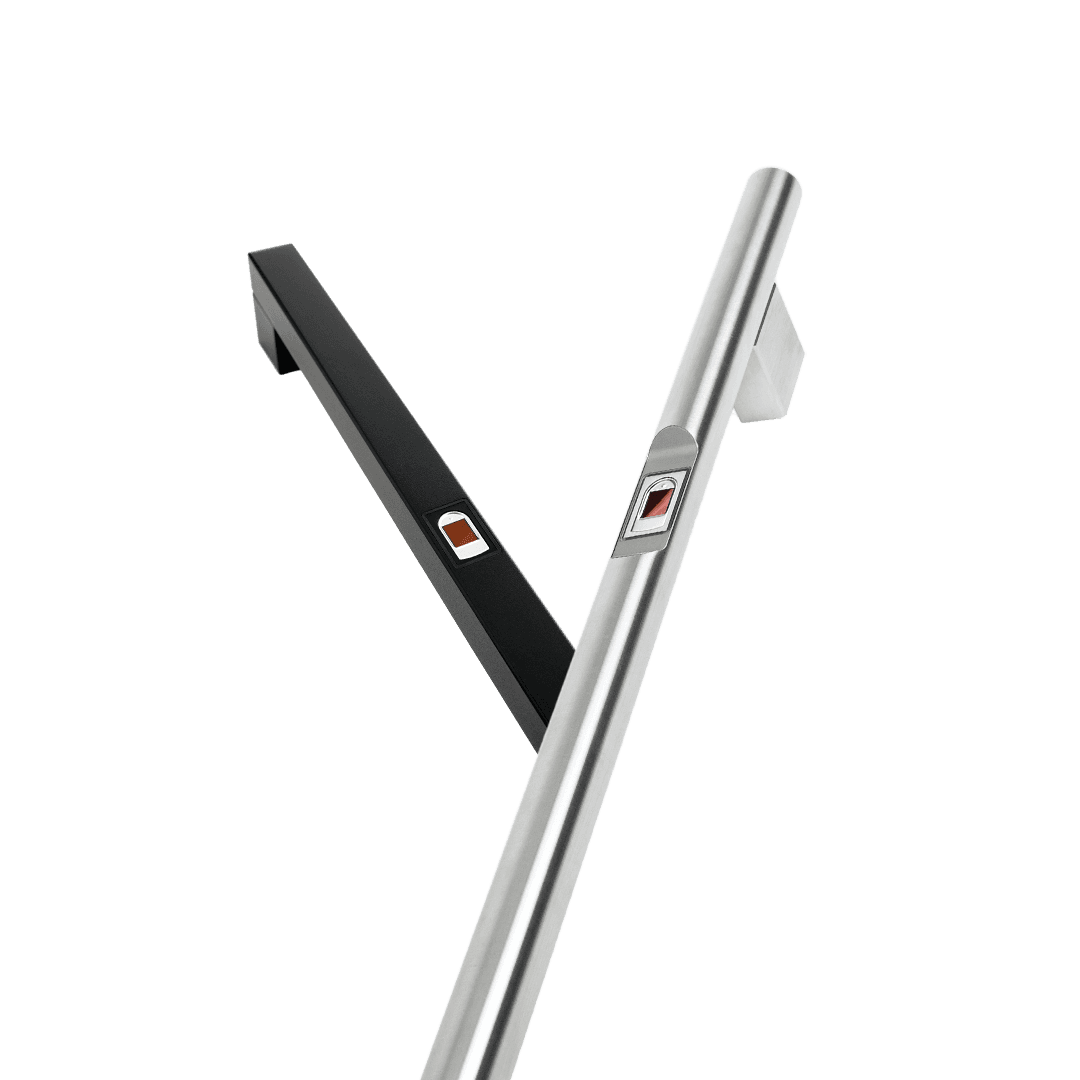

- Biohandle
- Touchpad
Functions:
- Analogue control
- App control (Wi-Fi direct)
- 2 relay output
![DIN CONTROL UNIT](/_next/image?url=%2Fimages%2Fdin.png&w=640&q=75)
CU-303
BBX MINI CONTROL UNIT
The control unit is built into the door leaf, next to the motor lock or next to the cable transfer.
Compatible:
- Touchkey fingerprint scanner
- Biohandle
- Touchpad
Functions:
- Analogue control
- App control (Wi-Fi direct)
- LED connection
- 1 relay output
![BBX Mini](/_next/image?url=%2Fimages%2Fbb.png&w=640&q=75)
BBX Mini
![Compatible with all automation Brands.](/_next/image?url=%2Fimages%2Ficon-15.png&w=256&q=75)
![Compatible with Analog and IP Video doorphones.](/_next/image?url=%2Fimages%2Ficon-16.png&w=256&q=75)

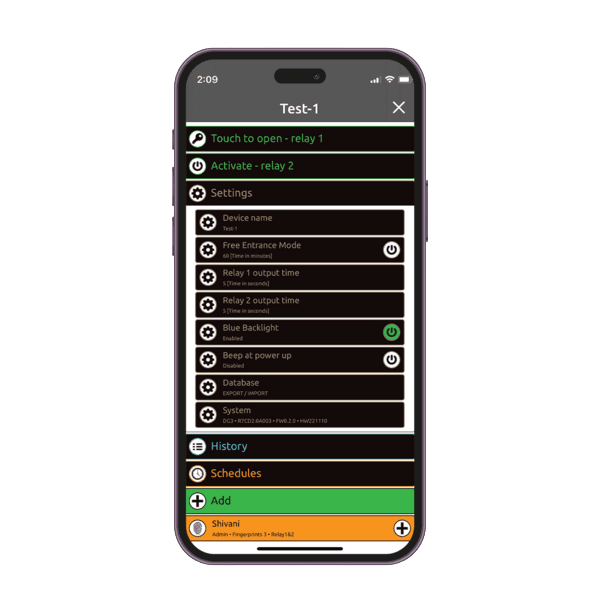

![APP CONTROL](/_next/image?url=%2Fimages%2Ftouchkey-app-control-final-sharp.png&w=750&q=75)
![FINGERPRINT CAPACITIVE: 166X3](/_next/image?url=%2Fimages%2Ficon-4.png&w=96&q=75)
![NUMBER OF ADMINISTRATORS: Unlimited](/_next/image?url=%2Fimages%2Ficon-5.png&w=96&q=75)
![BLUE BLACKLIGHT ON/OFF](/_next/image?url=%2Fimages%2Ficon-6.png&w=96&q=75)
![SCANNER SECURITY LOCKDOWN](/_next/image?url=%2Fimages%2Ficon-7.png&w=96&q=75)
![LED CONTROL](/_next/image?url=%2Fimages%2Ficon-8.png&w=96&q=75)
![HISTORY OF EVENTS](/_next/image?url=%2Fimages%2Ficon-9.png&w=96&q=75)
![RELAY SETUP](/_next/image?url=%2Fimages%2Ficon-10.png&w=96&q=75)
![ENTRANCE SCHEDULES FOR USERS](/_next/image?url=%2Fimages%2Ficon-11.png&w=96&q=75)
![FREE PASS MODE](/_next/image?url=%2Fimages%2Ficon-12.png&w=96&q=75)
![DATABASE IMPORT AND EXPORT](/_next/image?url=%2Fimages%2Ficon-13.png&w=96&q=75)
![UNLOCKING THE DOOR VIA SMARTPHONE APP (WITHIN LOCAL REACH)](/_next/image?url=%2Fimages%2Ficon-14.png&w=96&q=75)
Product Features And Details
- Capacity: 165 Users, 1 Admin
- The controller has 2 relay outputs to control 2 locks independently or simultaneously.
- Can be used for Main door or Sliding / Swing wardrobe doors
- It is possible to control up to 8 wardrobe doors with one Reader and controller.
- ID3 algorithm for biometric data processing
- Compatible with all Automation Systems
- Compatible with all video door phones.
- Mounting: Flush Mount with Backbox
- Push Button Input: Yes (Two Inputs)
- Lock Relay Timing: Programmable (Max 60 sec).
- Backlight Led on reader for feedback.
- Sophisticated sensor for quick fingerprint recognition.
- Fingerprints remain stored in the event of power failure.
- Weekly Scheduling possible.
- Log details are available.

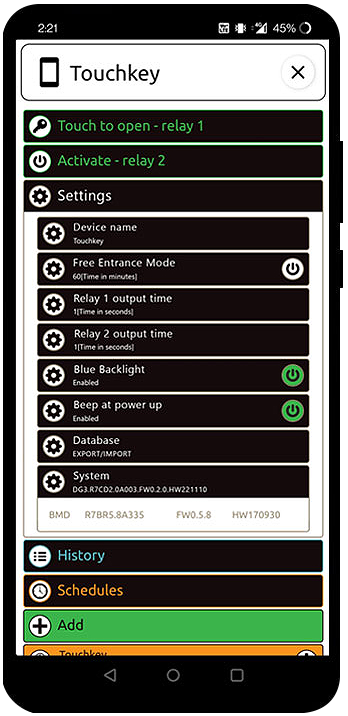

- Control App for IOS & Android Mobile available.
Aurus has a complete range of locking solutions compatible with Touchkey. To know more click on the link below
